CUDY 2-IN-1 GIGABIT VPN ROUTER/ AP CONTROLLER

CPU

• Processor: 880 MHz Dual-Core

Memory & Storage

• Flash/ROM: 16 MB (128 Mbit) NOR

• DDR/RAM: 256 MB (2 Gbit) DDR3

Interfaces

• Gigabit RJ45 Ports: 5

• Gigabit RJ45 PoE Ports: #2~#5

• Max Power on a Single PoE Port: 30 W

• PoE Ports Notes: Compliant with IEEE 802.3at/af standards

• Ethernet Notes: 1× WAN Port, 4× LAN Ports

• USB-A 3.0 Ports: 1

LED Indicators

• System

• PoE Max Status

• Link/ACT/PoE Status of Each PoE Port

Physical Buttons

• Reset Button

Power

• Power Methods: DC, 802.3at/af PoE, Passive PoE

• DC Input: 54V 1.11A

• Passive PoE: 24/48V

• Power Adapter: Input 100 ~ 240 V, 50 Hz AC; Output 54V 1.11A DC

• Max Power Consumption: Total 60 W; PoE 55 W; PoE (USB plugged in) 50 W; No PoE 5 W

• Idle Power Consumption: 2 W

Reliability & Environment

• EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact 6 kV, Air 8 kV

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

• Operating Humidity: 5% ~ 95% non-condensing

• Storage Humidity: 0% ~ 100% non-condensing

• Grounding Methods: Grounding Point

• Certifications: FCC, CE

Mechanical & Installation

• Installation: Desktop, Wall-mount

• Casing Material: Metal

• Dimensions: 190 × 100 × 28 mm (7.48 × 3.94 × 1.1 in)

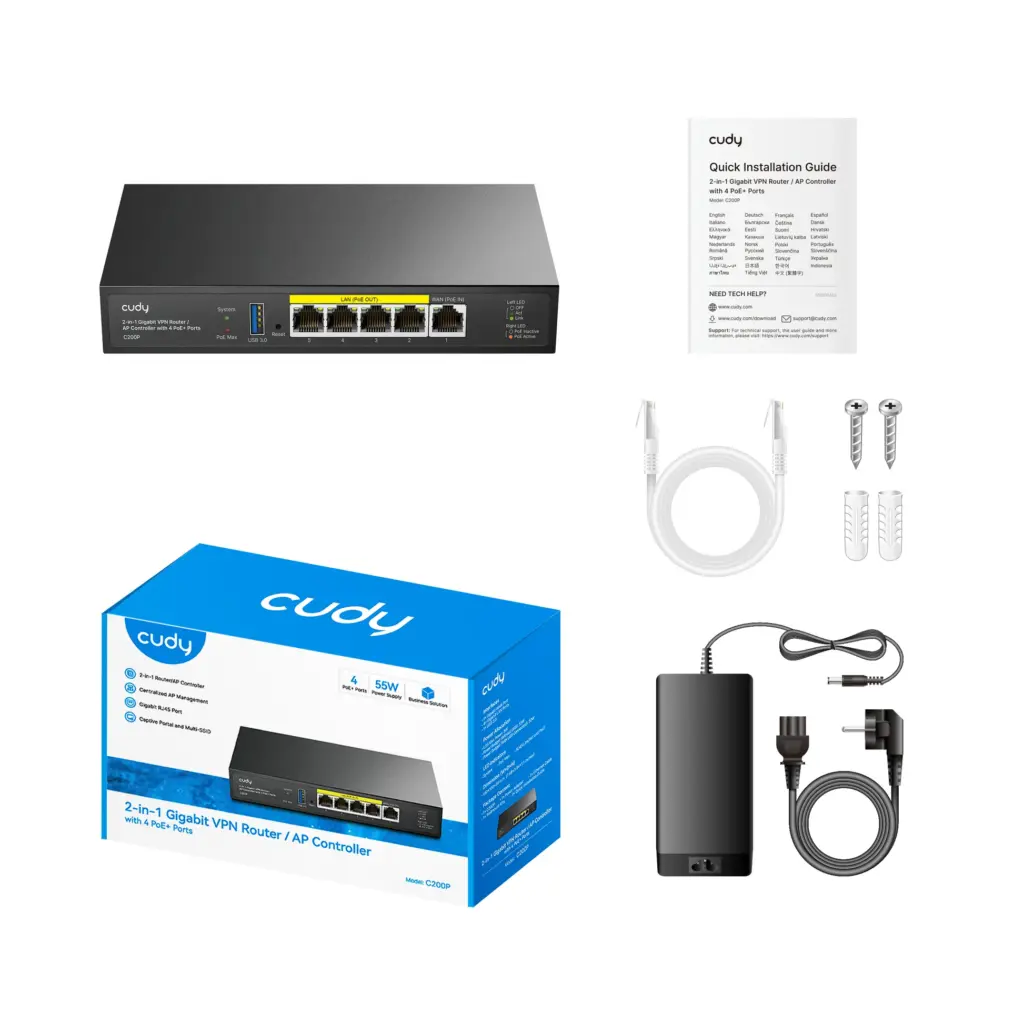

Package Contents

• C200P

• Power Adapter

• Ethernet Cable

• Installation Guide

• Mounting Kit

Ordering Information

• Retail Package Dimension: 209 × 132 × 81.5 mm (8.23 × 5.2 × 3.21 in)

• Units per Carton: 10

• Carton Dimension: 43.8 × 42.8 × 15.1 cm (17.24 × 16.85 × 5.94 in)

Software Specs

General

• WAN Mode: DHCP, Static IP, PPPOE

• Recommended Number of APs:

  1. Main Router + AP Controller Mode: 10

  2. AP Controller Mode: 200*
     *If using the external portal server feature, it is recommended to manage fewer than 200 APs.

• Recommended Number of Clients:

  1. Main Router + AP Controller Mode: 100

  2. AP Controller Mode: Unlimited

Network

• QoS: Rate Limiting

• DHCP: Address Reservation, DHCP Client List, Server

• IP Versions: IPv4 / IPv6

• IPv6 Protocols: Relay, Dynamic (SLAAC / DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite

• TTL Customization: Extend, Spoof, Custom

• IGMP: IGMP Proxy, IGMP Snooping

• Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

• Firewall: SPI Firewall, DoS Protection, Block PING

• Application Layer Gateway: IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough

VPN

• VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

• VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

• VPN Performance:

  • OpenVPN Client (UL/DL): 22 / 24.7 Mbps

  • OpenVPN Server (UL/DL): 22 / 20.9 Mbps

  • WireGuard Client (UL/DL): 142 / 233.9 Mbps

  • WireGuard Server (UL/DL): 213 / 152 Mbps

• Max Concurrent VPN Tunnels:

  • IPSec: 20

  • PPTP/L2TP: 16

  • OpenVPN: 16

DNS Options

• DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS

• DNS over TLS Providers: Cloudflare, Google, Quad9, Custom

USB Functions

• Samba Server

Other Utilities

• Wake on LAN: Supported

• Online Detection: Supported

Management

• All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding, Per-Device Management, Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename

• Content Management: Domain Filter, IP Filter

• AP Management: Captive Portal, Multi-SSID (Up to 4 SSIDs per band)

System

• Local Control Method: Config Web Page

• Remote Control Method: Config Page via HTTPS, TR069/TR098/TR111/TR143/TR181

• Firmware Upgrade: Local Update

• Reliability: Timed Reboot, Backup and Restore

• Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log

Dashboard

• Panel: Internet Status, WAN Status, LAN Status, VPN Status, DHCP Server Status, System Version, AP Management

Languages

• English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese
