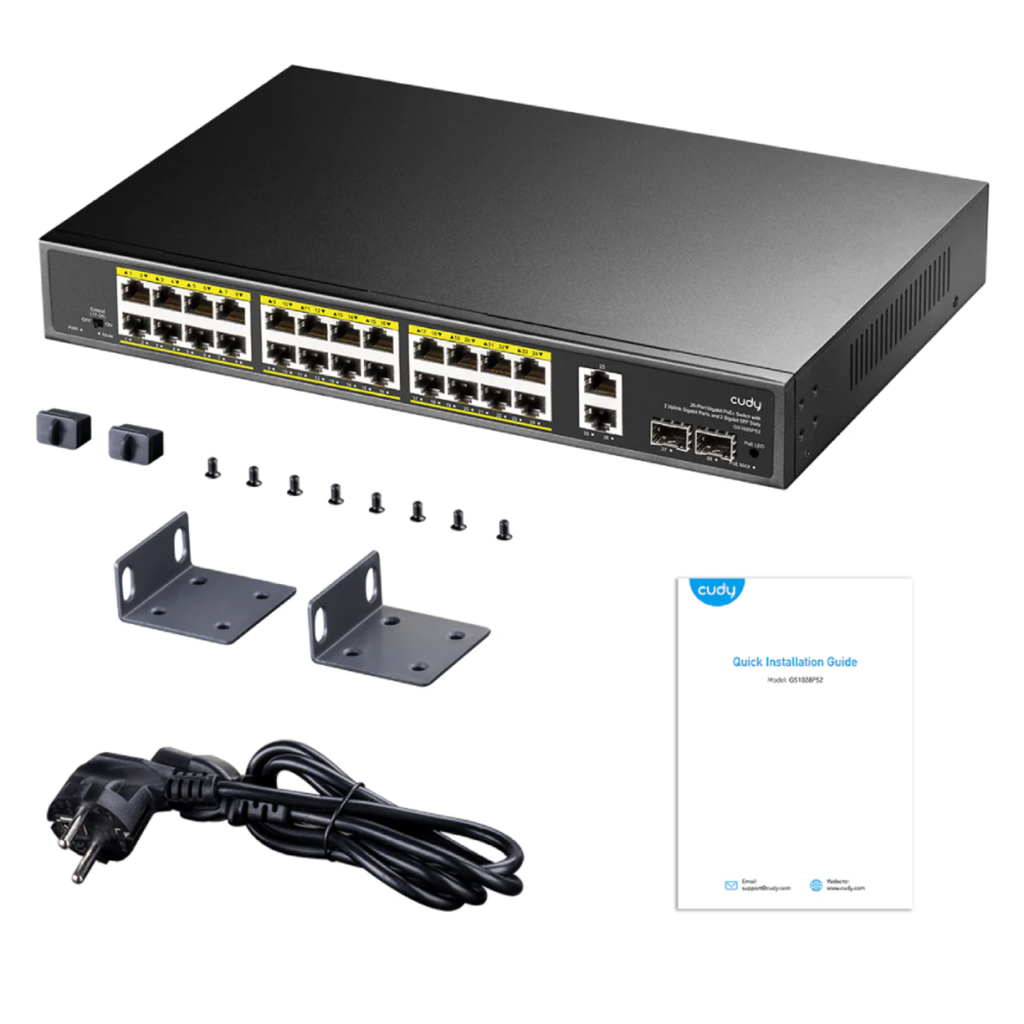

Cudy GS1026PS2 26-Port Gigabit PoE+ Managed Switch with 24 PoE Ports and 2 SFP Slots for High-Powered Network Solutions

Cudy GS1026PS2 26-Port Gigabit PoE+ Managed Switch with 24 PoE Ports and 2 SFP Slots for High-Powered Network Solutions

This switch is designed for businesses or networks requiring reliable PoE power delivery, high-performance data handling, and advanced management features.

• Ports:

  • 24 x 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports
  • 2 x Gigabit SFP Slots (for fiber connections)

• PoE+ Support:

  • Provides Power over Ethernet (PoE+) on all 24 Ethernet ports
  • Total PoE power budget: 250W (for all PoE devices connected)

• Network Features:

  • Managed switch with web-based management interface
  • Supports VLAN, QoS, IGMP snooping, and port mirroring
  • Supports Link Aggregation for increased bandwidth

• Performance:

  • Switching Capacity: 52Gbps
  • Forwarding Rate: 38.69 Mpps (Million packets per second)
  • MAC Address Table: 8K entries

• Power and Cooling:

  • Dual Power Supply (AC redundancy for high availability)
  • Internal fans for cooling

• Security and Management:

  • Supports advanced security features like 802.1X authentication, RADIUS, and access control lists (ACLs)
  • SNMP v1, v2, and v3 support
  • Easy-to-use management interface via web browser or SNMP

• Mounting and Form Factor:

  • Rackmountable 1U form factor
  • Suitable for 19-inch server racks

• Environmental:

  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -40°C to 70°C
  • Operating Humidity: 10% to 90% non-condensing
